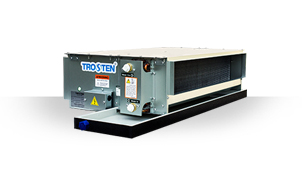

Fan Coil Unit TFC Series

Trosten Industries Company LLC., located in Dubai, UAE provides Eurovent Certified Fan Coil Units with UL recognized motor components. EC / DC fan coil units (FCUs) are designed to deliver a SFP value of 0.2 – 0.3 w/lps as per Green Building Regulations. Custom built fan coil units are built with AHRI 410 certified cooling coils and performance tested in our psychrometric testing laboratory. Trosten is one of very few local Fan Coil Units manufacturers in the GCC region.

Exposed / Decorative Fan Coil Units (FCUs) are aesthetically designed to suit the space interiors, matching the RAL shade colors.

At Trosten Industries, we are committed to providing high-quality HVAC solutions suiting your requirements. Our EC Fan Coil Units are installed with very high efficiency electronically commutated motors (ECM) and are suitable for higher capacities over 1200 lps. The efficiency of our EC motors is up to 82%. AC Fan Coil Units are offered with 5 speeds as a standard feature, providing flexibility of choosing 3 different medium speed at per the site demand.

To learn more about our Fan Coil Units and to know their efficiency and performance, please contact us.

Fan Coil Unit
Single Skin Ducted FCU
Single skin Decorative FCU

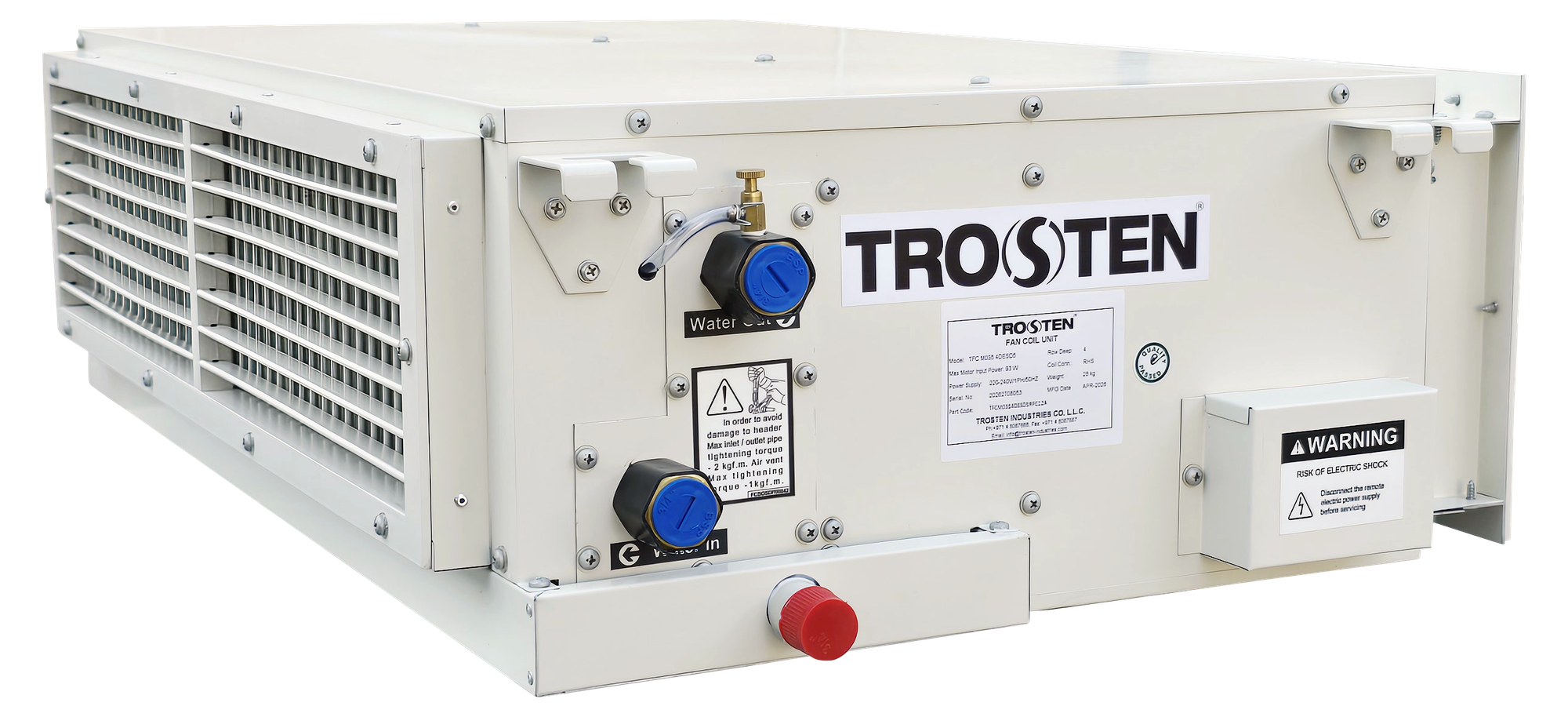

Single Skin Exposed FCU
Double skin ducted return bottom removal EC motor
Double Skin Ducted FCU
Double skin Decorative FCU

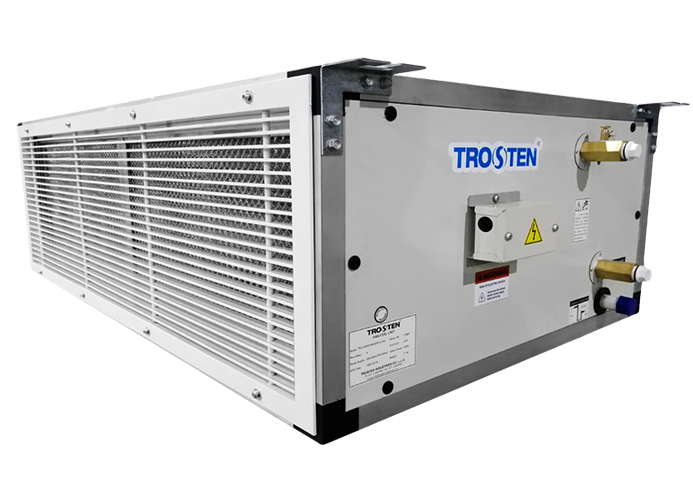

Double Skin Exposed FCU

Key Features

  • Eurovent Certified
  • Capacity range: 200 CFM to 2500 CFM
  • Branded fan motor for both AC and EC
  • UL recognized components ensuring safety for all AC and EC motors
  • 5 speed options as standard for all AC fan motors
  • EC (DC) Fan Coil Unit with brushless EC/DC electronically commutated motors (ECM)
  • AHRI 410 certified cooling coils
  • Available for district cooling system (high ΔT)
  • Medium and high static pressure units
  • Available in concealed and decorative casing
  • Fire Rated Insulation as standard
  • Fasteners tested for 1000 hours of salt spray test

Optional Features

  • Decorative ceiling suspended and floor mounted units
  • 4 pipe system
  • Electric heaters
  • Stainless steel drain pan (Optional)
  • Synthetic media filters (Optional)
  • Factory fitted valve package (Optional)
